DH high quality Z146W microseism squeeze molding machine

FOB Reference Price:Get Latest Price
$5,000.00 - $14,500.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
Z146W
Feature:
Critical Cleaning / Residue Free Non-Ionic Non-Toxic Rust / Corrosion Inhibitor
Industry Used:
foundry
Report Suspicious Activity
Overview
Quick Details
Machine Type:
Abrator
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
DH
Fuel:
Electric
Certification:
CE, ISO 9001
Use:
Container / Bottle Cleaning
Cleaning Process:
air
Cleaning Type:
abrasive
Material:
Metal / Coil
Power(W):
different
Dimension(L*W*H):
1100*850*1800
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
color::
white,blue,yellow,green
warranty::
one year
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
seaworthy
Port
qingdao

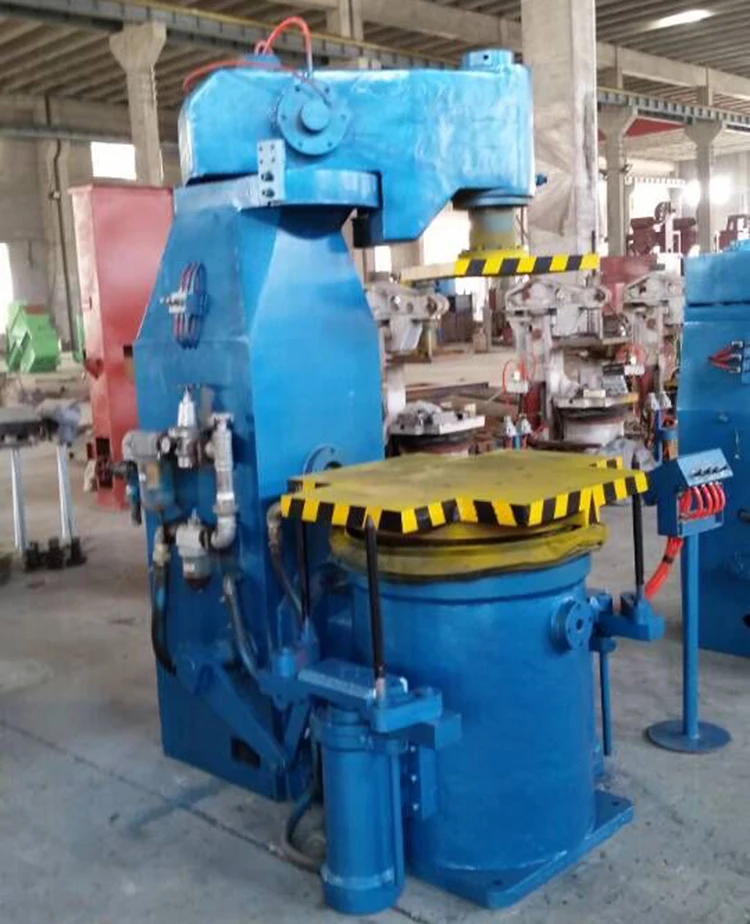

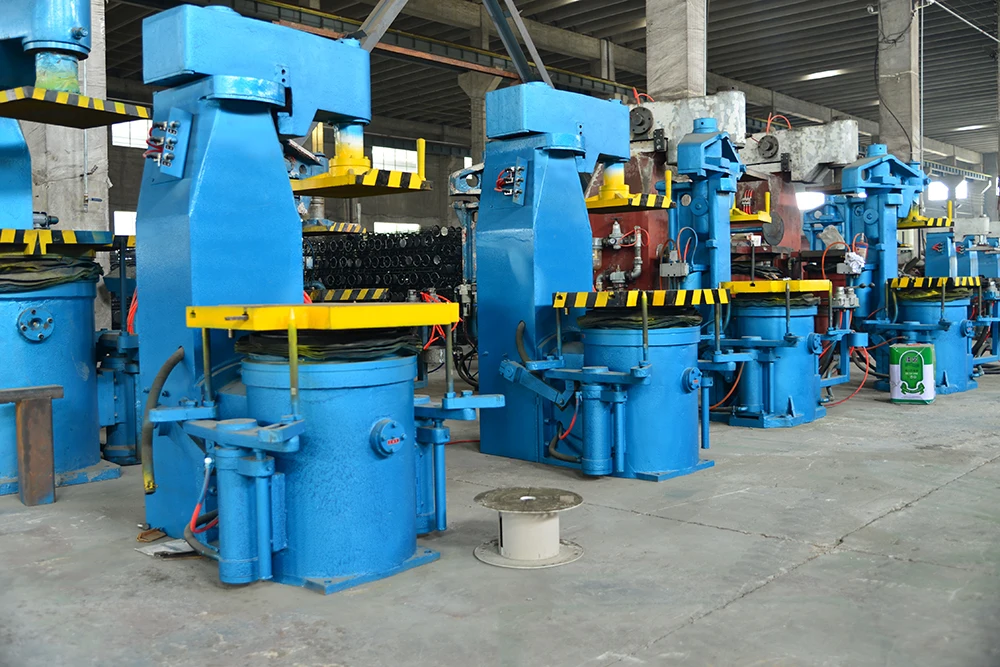

DH Z146W microseism squeeze molding machine



Technical characteristics:

Optimal design of the structure, the fuselage of the machine adopt the square chest and frame structure, so it can significantly increase the rigidity of the fuselage!

The machine adopt the jolting technology, so it can significantly increase the compressive stress to make the hardness up to HB90 and upgrade one level about the surface roughness, so it can guarantee the quality

The shock part of the machine is buffer spring, so it can effectively reduce the impact to foundation

The pattern drawing mechanism adopt the cylinder,crank, connecting rod, synchronizing shaft to achieve the synchronism

The control part, it adopts all pneumatic components to achieve the global function, simple operation and convenient to maintenance

The machine is convenient to operate, itcan visual the sand mould, human operation, so it is effective to increase the productivity.



Type

Z146WA

Z146WB

Foundry flask maximum dimension(mm)

500X450X200

550X450X200

Worktable size(mm)

600X550

600X550

Jolting load(kgf)

300

300

Compressive stress(kgf)

5000

6300

Compressive process

200

200

Moulding process(mm)

180

200

Productivity(box/h)

40-60

40-60

Jolting cylinder diameter(mm)

150

150

Consumption of free air(M ³/box)

0.4

0.4

Overall dimension(LXWXH)mm

1300X800X1700

1200X800X16
